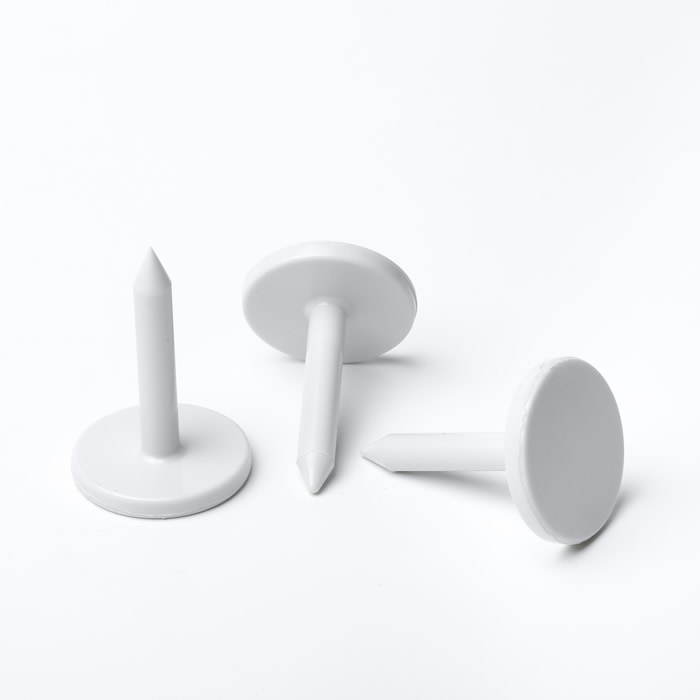

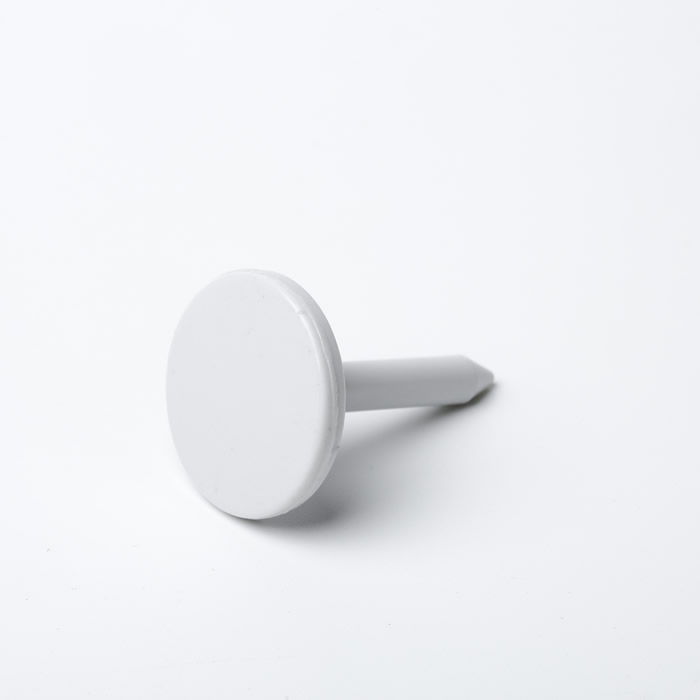

UHF RFID Nail Tag With ABS Material
- Brand
- IdcardTech
- Categories
- RFID Nail Tag
- Size
- 23 × 40.5 mm
- Material
- ABS
- Color
- White,Black or can be customized
- Chip
- UCODE GEN2, ALIEN H3, IMPINJ Monza 4QT
- Protocol
- ISO18000-6C
Description
RFID nail tag as a new application shape RFID tag, encapsulated by special plastic materials and chip coils that can be nailed into various wooden objects. With waterproof and anti-chemical corrosion effect. RFID nail tags are well applied to forestry (tree) management, trash management, furniture, wood identification, property tracking, production and operation processes.
Specification
| Product: | RFID nail tag |
| Material: | Special ABS material |
| Size: | 23×40.5mm,36×6mm, 40×10mm, 41×28mm( or can be customized ) |
| Frequency: | 860-960MHz |
| Protocol: | ISO18000-6C |
| Chip: | UCODE GEN2, ALIEN H3, IMPINJ Monza 4QT |
| Read distance: | 0-3M(depends on the chips and readers used by the customer and the application environment) |
| Work mode: | read/write |
| Data Retention: | 10 years |
| Write endurance: | 100,000 cycles |
| Working temperature: | -40℃~+85℃ |
| Storage temperature: | -55℃~+100℃ |
| Craft: | encode, etc |
| Color: | white, black, yellow or can be customized |
| Application: | Mainly suitable for all kinds of non-metal goods management, security inspection, military packaging, packaging identification, vehicle identification, park management, tree management and other asset identification management systems. Installed in cement products, plastic products, wood products, etc. |
Feature
Fast, secure installation – RFID Nail tags are easily driven into place, and are nearly impossible to remove.
Reliability – high resistance to moisture, thermal fluctuation, vibration, and shock.
Recording– Record all information from sapling to towering trees.
Tracking– Furniture factory can know the wood from which place is the best choice.
