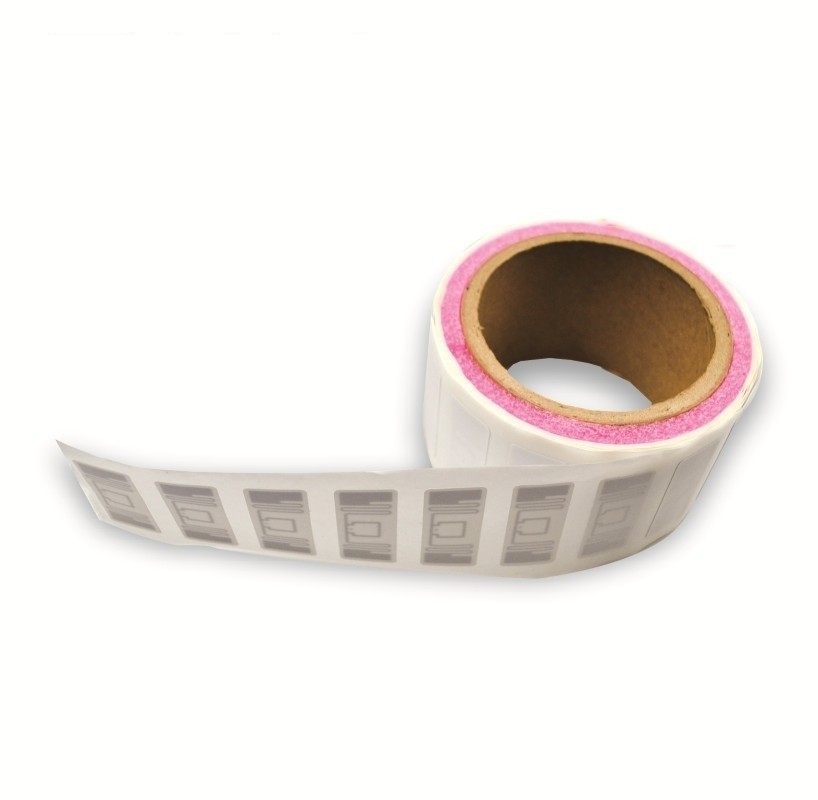

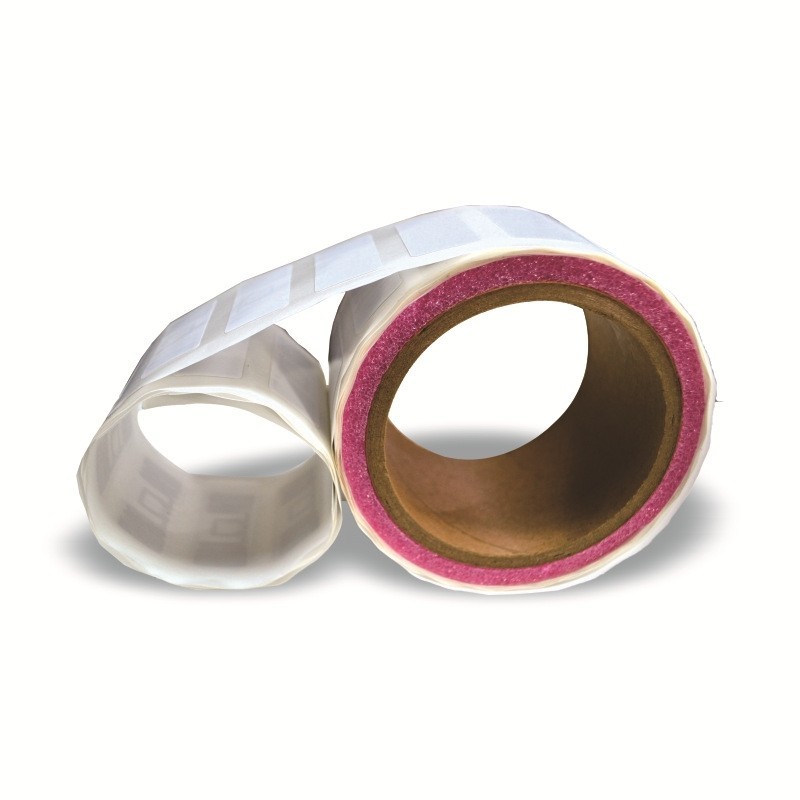

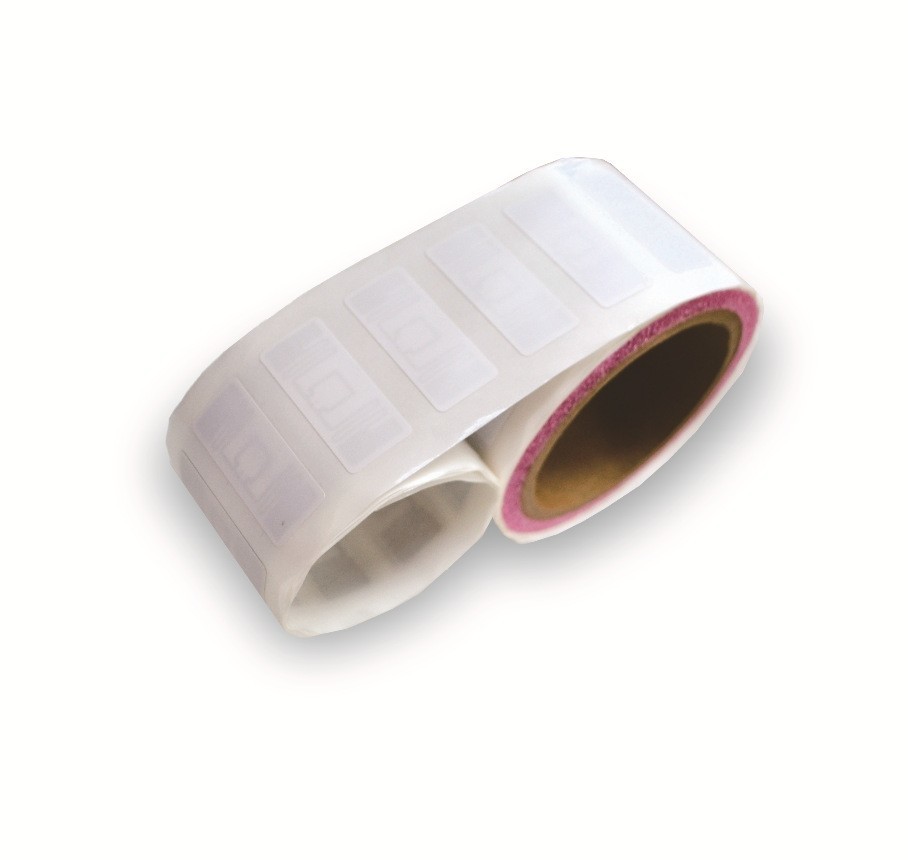

UHF label Imping Monza R6 with 43mm x 18mm
- Brand
- IdcardTech
- Categories
- NFC Label
- Material
- Coated paper,PVC,PET
- Chip
- Monza 4/5/R6
- Antenna
- PET base + Aluminum foil antenna (copper antenna)
We are professional RFID inlay manufacturers and we provide you high-quality RFID UHF label.
UHF label is made up of the surface material, PET base foil (aluminum etching or copper) antenna, HF/UHF chip and backing paper. The conventional products can be logistics label, retail label, garment label, library label, jewelry label, archive label, vehicle label and fragile label for logistics management, asset management, retail, product management, warehouse management, production control, vehicle management and supply chain management.
Application:
Logistics and distribution
Product verification
Asset inventory and tracking
Baggage handling and tracking
Anti-counterfeiting and traceability system
Specification:
|
Product |
RFID LABEL |
|
Surface material |
Coated paper, Powder paper, Carbon paper, Self-destructive paper, Foam paper, Thermal paper Sticky PVC, Aluminum foil Brightening PVC, Transparent PVC Brightening PET, Transparent PET, Brightening PE |
|
Antenna |
PET base + Aluminum foil antenna (copper antenna) |
|
Backing paper |
Glassine release paper, PET release paper Kraft release paper, Coated release paper Molding release paper |
|
Color |
CMYK or printable by label printer |
|
Frequency |
HF: 13MHz to 15MHz UHF: 840MHz to 960MHz |
|
Chip |
HF: FM11RF08, S50, NTAG, ULTRALIGHT EV1, ICODE SLI/SLIX, TI, UHF: Alien Higgs 3/4, Impinj Monza 4/5/R6, UCODE 7/8 |
|
Power supply mode |
Passive |
|
Working temperature |
-5C to 60C |
|
Working humidity |
0-95% |
|
Storage temperature |
-10C to 65C |
|
Reading distance |
0– 6m depends on reader and antenna |
|
Endurance |
100,000 cycles |
