Description

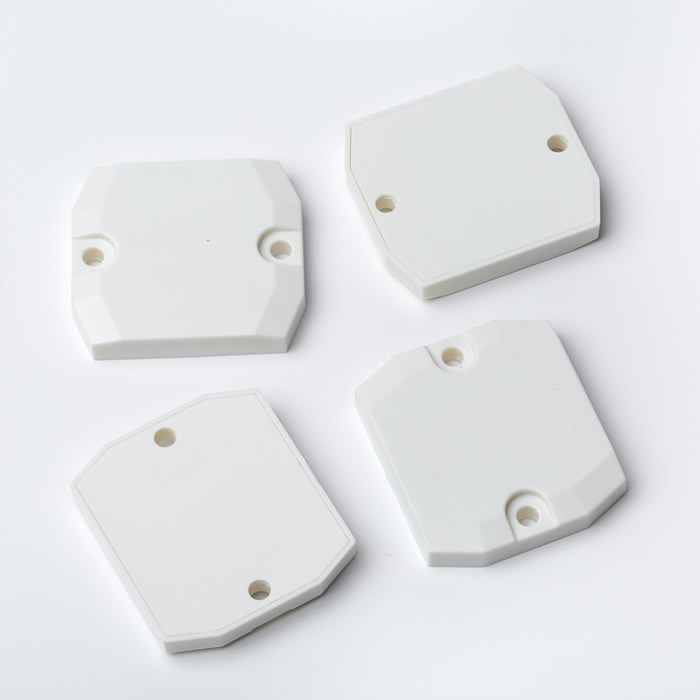

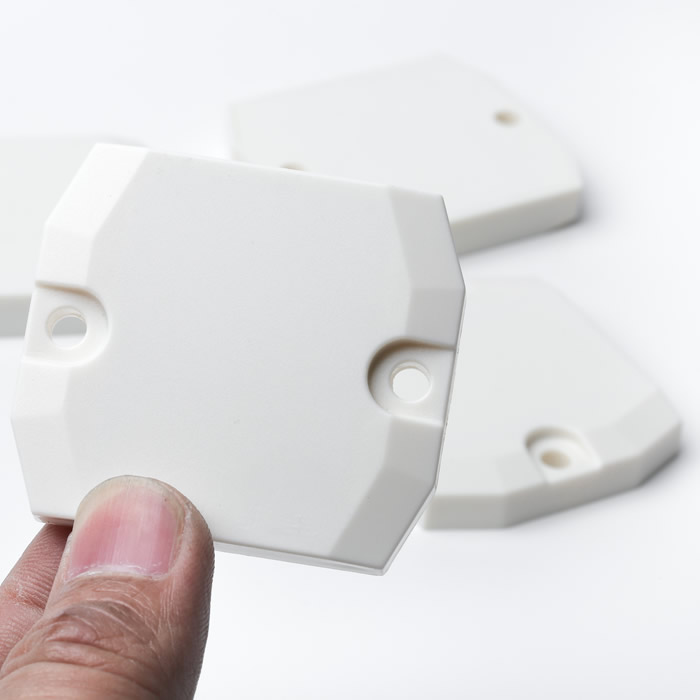

ABS material high temperature resistant waterproof UHF anti-metal tags, is an electronic tags suitable for metal environment applications. The electronic tags can be mounted on any media surface (including metal) and can be applied to various applications such as metal, plastic, wood, etc., even liquid tanks. It can be quickly identified by the RFID card reader. The mounting method can be fixed by the mounting hole of the label, or it can be installed with the label backing paste.
It should be noted that the viscosity of the label adhesive is relatively high, please use the adhesive to select the position before installing.
The surface can be printed with LOGO, pattern or code.

The tags is made of high temperature resistant engineering plastic and has high temperature resistance and waterproof and dustproof properties.

Specification

Applicable frequency: HF 13.56MHz / UHF 860~960MHz
Communication protocol: ISO 14443 TypeA, EPC C1 GEN2, ISO 18000-6C
Working mode: passive
Reading distance: high frequency: 1~10cm (distance depends on reader power and antenna size, reader antenna and tags polarization direction)
UHF: fixed readers up to 9m; handheld readers up to 3m (distance depends on reader power and antenna size, reader antenna and tags polarization direction)
Service life: erased 100,000 times
Data retention: 10 years
Storage temperature / humidity: -25℃~+50℃ / 20%～90% RH
Operating temperature / humidity: -50℃~+60℃/ 20%～90% RH
Substrate material: ABS
Antenna material: PET + aluminum etching
Size: 50×56×9mm

Application

Library management system
File management system
Drug tracking management system
Warehousing/counting management system
Production line item tracking management system
Jewelry retail/display analysis decision system
Clothes tag and packing box general logistics or assembly line production, personnel attendance, etc.
